WELL ATA 172

Pripojenie

• ethernet kabel do WAN portu (ak mame lokalnu siet s DHCP) ALEBO pocitac do LAN portu
• analogovy telefon do Phone1
• napajaci adapter do zasuvky

Zistenie IP adresy a pripojenie do webu

IP adresu zistime cez analogovy telefon:

• #126# - nahlasi IP adresu WAN
• #120# - nahlasi IP adresu LAN
• #121# - nahlasi typ IP (DHCP ano/nie)

Pripojime sa na web na http://IP.AD.RE.SA:9999/ (nezabudnut port!)

• login: root
• heslo: test (starsie verzie firmware mali prazdne heslo)

Konfiguracia zariadenia

Network / WAN

• LAN mode: Bridge
• WAN settings / DNS Type: Auto

Phone Settings / Call Waiting

• nastavime na OFF (nie je vhodne cakat hovor do faxu)

SIP / Service Domain

• Phone 1 - Realm 1 ----- port Phone1, primarny server
• Phone 1 - Realm 2 ----- port Phone1, zalozny server

• Phone 2 - Realm 1 ----- port Phone2, primarny server
• Phone 2 - Realm 2 ----- port Phone2, zalozny server

Nastavuje sa:

• Active: On
• Display Name: 421....
• User Name: 421....
• Register Name: 421....
• Register Password: heslo
• Domain Server: ke.ipfon.sk
• Proxy Server: ke.ipfon.sk
• Outbound Proxy: (nevyplnat)
• Subscribe for MWI: Off

SIP / Codec

Pre fax je vhodne vypnut vsetky codecy, okrem G.711

• Codec 1: G.711 u-law
• Codec 2: G.711 a-law
• Codec 3: Not Used
• Codec 4: Not Used

NAT / STUN

Pre funkcnost FAXovania cez T.38 aj za NATkom je potrebne zapnut STUN. Predvoleny STUN port a hostname moze ostat.

• STUN: On

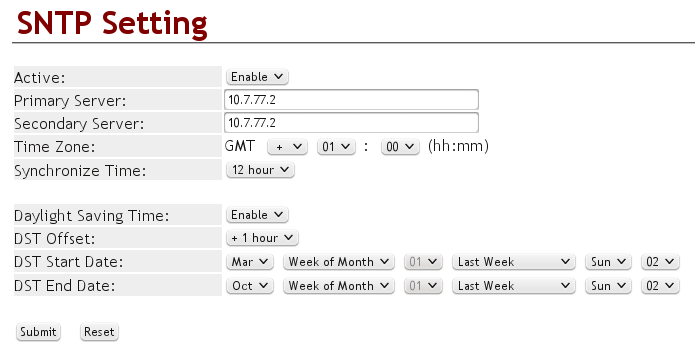

Other / Tones

Kto ma naladu, moze nastavit slovenske tony.

• DialTone / RingBack / Busy / Error / Ring / Insert
• Cadence on: zapnut na vsetkych
• Hi-Tone Freq: 425 / 425 / 425 / 620 / 480 / 440
• Lo-Tone Freq: 425 / 425 / 425 / 480 / 440 / 350
• Hi-Tone Gain: 2261 / 2261 / 2261 / 2261 / 15360 / 2261
• Lo-Tone Gain: 2261 / 2261 / 2261 / 2261 / 15360 / 1130
• On Time 1: 33 / 100 / 33 / 16 / 100 / 30
• Off Time 1: 33 / 400 / 33 / 16 / 400 / 20
• On Time 2: 66 / 0 / 0 / 0 / 0 / 30
• Off Time 2: 66 / 0 / 0 / 0 / 0 / 400
• On Time 3: 0 / 0 / 0 / 0 / 0 / 0
• Off Time 3: 0 / 0 / 0 / 0 / 0 / 0

Save Change

• Save - zariadeni sa rebootne a nabehne s novymi nastaveniami.
